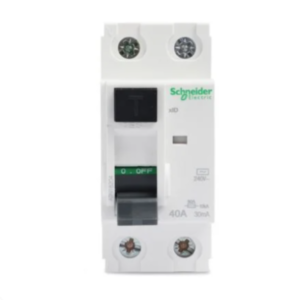

SCHNEIDER 2P 40A 30MA RCCB XID SI TYPE – ACTI 09 (10KA)

Protects Life and Property by detecting Earth leakage and isolating the affected circuit. This is a 2P, 40A RCCB with a sensitivity of 30mA.

Original price was: රු31,850.00.Current price is: රු23,887.50.

Compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility











Protects Life and Property by detecting Earth leakage and isolating the affected circuit. This is a 2P, 40A RCCB with a sensitivity of 30mA.

SHOW MORE

Additional information

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “SCHNEIDER 2P 40A 30MA RCCB XID SI TYPE – ACTI 09 (10KA)”

Your email address will not be published. Required fields are marked *

Related Products

General Data Standards Compliance IEC 61008 Warranty 5 Years from the Date of Selling Protection Protection against leakage current Technical data Rated Voltage AC 230/400V Rated Current (A) 40A/63A Rated Frequency 50/60Hz Number of Poles 2POLE Rated Making and Breaking Capacity (Im) 500A for 40A, 630A for 63A Rated Residual Operating Current (IΔn) 30mA, 100mA Rated Conditional Short Circuit Current (Inc) 10kA Rated Residual Non-operating Current (IΔno) 15, 50 & 150 (0.5 IΔn) Tripping Duration –Instantaneous Tripping ≤0.1 S Residual Current Characteristic A, AC Electro Mechanical Endurance 4000 cycles Degree of Protection IP 20 Terminal Space Capacity 25mm2 Fastening Torque 2 Nm DIN Rail Easy mounting on 35mm DIN rail Mounting Feature in Flush Type Adjustable type DIN rail mounting Mounting Type Rail plug in Connecting Type Clamping terminal External Dimensions (L*W*H) mm 2P -78*36*81 Material Overview Plastic Poly Amide (Fire Retardant Grade) Metal Phosphor Bronze, Brass, Zinc plated steel
General Data Standards Compliance IEC 61008 Warranty 5 Years from the Date of Selling Protection Protection against leakage current Technical data Rated Voltage AC 230/400V Rated Current (A) 40A/63A Rated Frequency 50/60Hz Number of Poles 2POLE Rated Making and Breaking Capacity (Im) 500A for 40A, 630A for 63A Rated Residual Operating Current (IΔn) 30mA, 100mA Rated Conditional Short Circuit Current (Inc) 10kA Rated Residual Non-operating Current (IΔno) 15, 50 & 150 (0.5 IΔn) Tripping Duration –Instantaneous Tripping ≤0.1 S Residual Current Characteristic A, AC Electro Mechanical Endurance 4000 cycles Degree of Protection IP 20 Terminal Space Capacity 25mm2 Fastening Torque 2 Nm DIN Rail Easy mounting on 35mm DIN rail Mounting Feature in Flush Type Adjustable type DIN rail mounting Mounting Type Rail plug in Connecting Type Clamping terminal External Dimensions (L*W*H) mm 2P -78*36*81 Material Overview Plastic Poly Amide (Fire Retardant Grade) Metal Phosphor Bronze, Brass, Zinc plated steel
