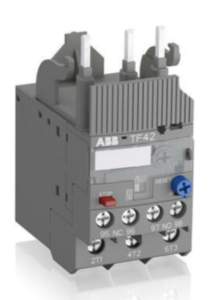

The ABB TF42 is a thermal overload relay that protects motors from overload or phase failure. It can be used in the main circuit and is an economical electromechanical device.
Features
- Trip indication: A front-facing trip indicator that shows if the circuit has broken
- Temperature compensation: Compensates for temperature changes
- Trip contact: Can be set to NC or NO
- Reset: Can be set to automatic or manual
- Trip-free mechanism: Prevents tripping in certain situations
- STOP function: Stops the circuit in certain situations
Applications
The ABB TF42 can be used in a variety of industries, including power distribution, power management, automation, and motor management.
Testing
You can test an overload relay using a multimeter to check if it’s conducting electricity properly. If the multimeter displays an infinite reading or “OL” (open loop), the relay may be faulty or damaged.
EcoSolutions
Some ABB thermal overload relays are part of the ABB EcoSolutions portfolio. This label indicates that the product has met certain sustainability standards.
